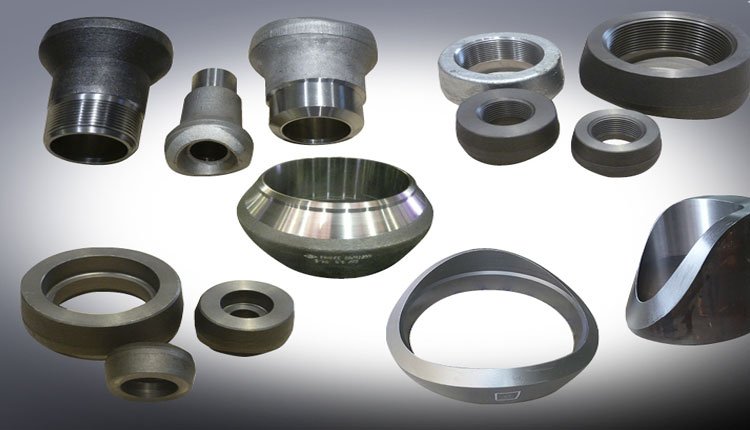

Type : Socket Weld, Nominal Pipe Thread ( NPT ),  Buttweld,  Plain end

 Size: 1/8” – 80”

Pressure Rating: 2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs

Wall Thickness: Schedule S-10 to S-XXS.

Special wall thicknesses or intermediate walls are also available in stock.

Dimension & Tolerances : MSS SP97

Pipe dimensions as per ANSI B36.1

Beveled according to AME B16.25

Socket end according to ASME B16.11

Threaded according to ASME B1.20.1

Material                                              Grade

ASME/ASTM SA/A105                    : N

ASME/ASTM SA/A182                    : F304/304L, F316/316L, F51, F60, F53, F55

ASME/ASTM SA/A350                    : LF2

ASME/ASTM SA/A694                    : F42, F52, F60, F65, F70

* Special material such as Monel, Inconel, Cu-Ni are available on request.

Specifications: NACE, SAMSS, MESC, DGS, KOC, KNPC, NORSOK, etc.

Certification: EN10204 3.1 or 3.2 by IACS approved inspection bodies.

Finishing: Black, hot dip galvanizing, electro plating Stainless Steel: Pickled and Passivated
