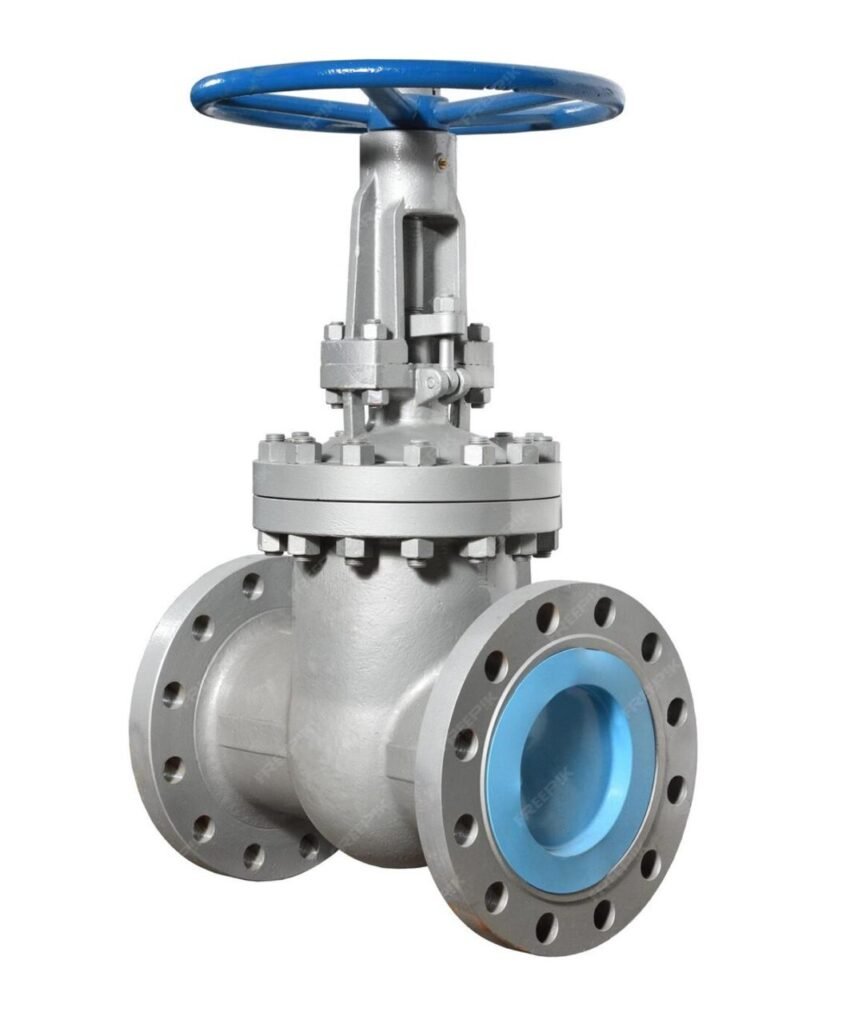

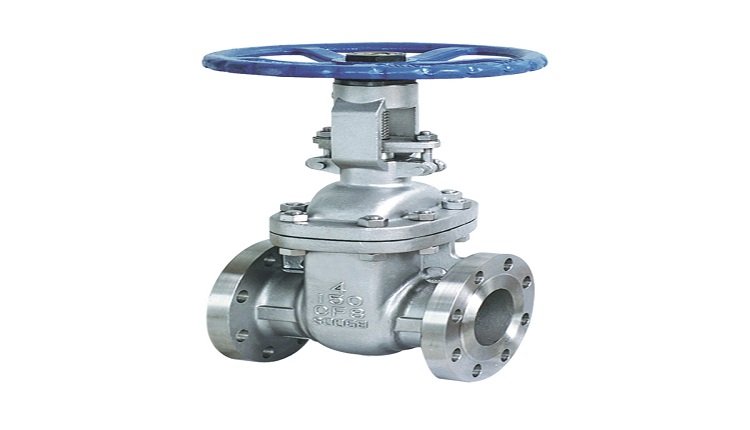

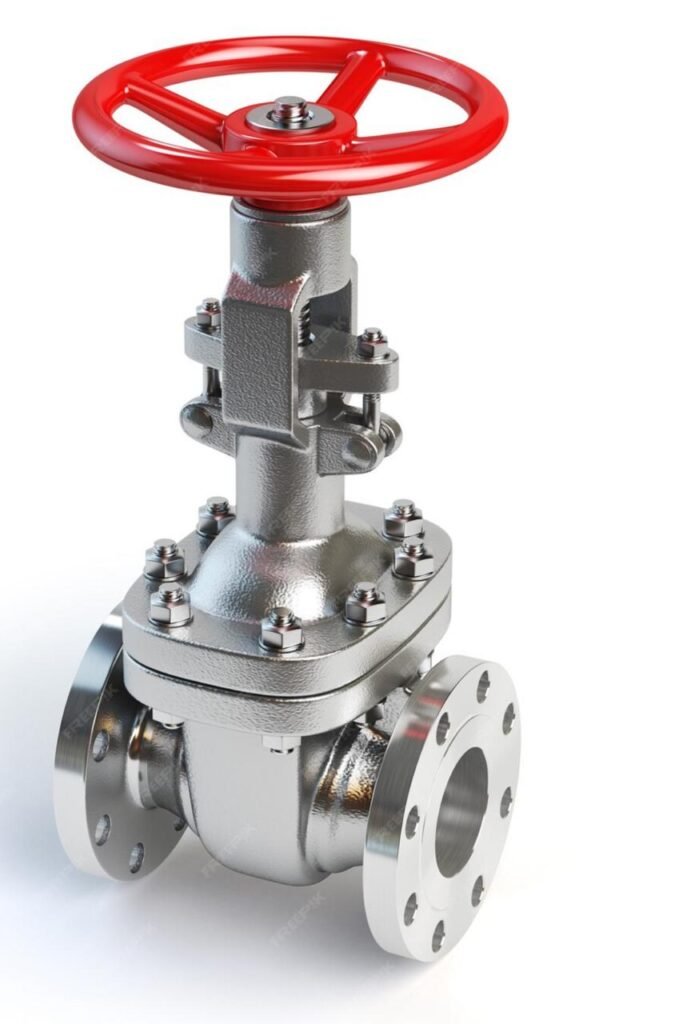

Type: Gate Valve, Globe Valve, Check Valve, Ball Valve in Forged and Cast Steel.

Size: ½” – 24” (Larger diameter available on request).

Pressure Rating: 150, 300, 600, 800, 900, 1500, 2000, 2500, 3000.

Wall Thickness: Schedule S-10 to S-XXS.

Dimension & Tolerances: ASME B16.34, B16.10, API SPECS.

Material                                              Grade

ASME/ASTM SA/A105                    :

ASME/ASTM SA/A182                    : WP304/L, WP316/L.

ASME/ASTM SA/A216                    : WCB, WCC.

ASME/ASTM SA/A350                    : LF2

ASME/ASTM SA/A351                    : CF3, CF3M. CF8, CF8M

ASME/ ASTM SA/ A352                  : LCB, LCC

* Special material such as Monel, Inconel, Cu-Ni are available on request.

Trim Material: 410, SS304, SS310, SS316, Monel, Alloy 20

Specifications: NACE, SAMSS, MESC, DGS, KOC, KNPC, NORSOK, etc.

Certification: EN10204 3.1 or 3.2 by IACS approved inspection bodies.

Coating & Services: Galvanizing ( Electro/ Hot dipped), Three Layer Poly Ethylene/ Propylene (3LPE/ 3LPP), Cement Mortar Lining, Coal Tar Enamel (CTE), Sandblasting and Primer coating can be provided.
